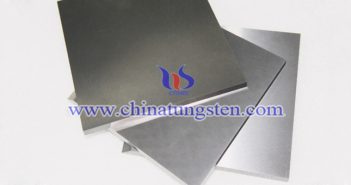

93W-4Ni-3Cu tungsten alloy plate has stable chemical properties, better machinability, and low impact toughness coefficient. It is widely used in applications such as aviation, aerospace, nuclear high-temperature furnace, glass, ceramic, crystal production. The properties of 93W-4Ni-3Cu tungsten alloy plate are: Alloy Type：W 93%、Ni 4%、Cu 3% MIL-T-21014: NIL SAE-AMS-T-21014: NIL AMS 7725 C: NIL ASTM B777-87: NIL Density: 17.1 g/cc and 0.614 lbs/ in3 Hardness Rockwell: 24 C Yield Strength Min (0.2% offset): 550~750 Mpa Elongation: 8~15 % Magnetic Properties: Non-magnetic…

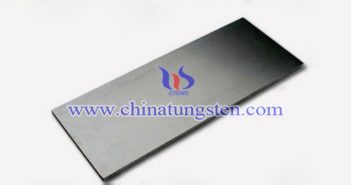

97W-2.1Ni-0.9Fe tungsten alloy plate good red hardness, high thermal and electrical conductivity, good thermal conductivity, and resistant to breakage. It is widely used in the elector-vacuum, lighting, and electronics industries. The properties of 97W-2.1Ni-0.9Fe tungsten alloy plate are: Alloy Type（%）：97W、2.1Ni、0.9Fe MIL-T-21014: Class 4 SAE-AMS-T-21014: Class 4 AMS 7725 C: NIL ASTM B777-87: Class 4 Density: 18.5 g/cc and 0.668 lbs/ in3 Hardness Rockwell: 28 C Ultimate Tensile Strength Min: 123,000 ksi Yield Strength Min (0.2% offset): 85,000 ksi Elongation: 5…

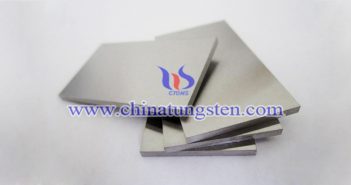

95W-3.5Ni-1.5Fe tungsten alloy plate has good thermal and electrical conductivity, excellent arc resistance, superior wear resistance and strength at elevated temperatures. It can be used as parts of electric light sources and electron tubes, to heat elements of high temperature furnaces, structures of high temperature furnaces, and evaporation boats. The properties of 95W-3.5Ni-1.5Fe tungsten alloy plate are: Alloy Type（%）：95W、3.5Ni、1.5Fe MIL-T-21014: Class 3 SAE-AMS-T-21014: Class 3 AMS 7725 C: NIL ASTM B777-87: Class 3 Density: 18 g/cc and 0.65 lbs/ in3…

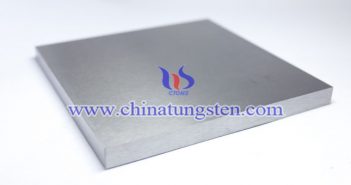

95W-3.5Ni-1.5Cu tungsten alloy plate has is with excellent abrasive resistance, good heat and corrosion resistance, high absorption capacity for X-rays and gamma rays. It is widely used as wear parts and shielding parts. The properties of 95W-3.5Ni-1.5Cu tungsten alloy plate are: Alloy Type（%）：95W、3.5Ni、1.5Cu MIL-T-21014: Class 3 SAE-AMS-T-21014: Class 3 AMS 7725 C: NIL ASTM B777-87: Class 3 Density: 18 g/cc and 0.65 lbs/ in3 Hardness Rockwell: 27 C Ultimate Tensile Strength Min: 110,000 ksi Yield Strength Min (0.2% offset): 85,000…

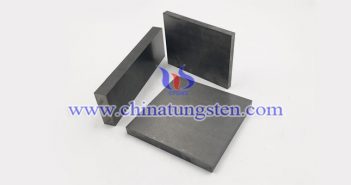

93W-Ni-Fe-Mo tungsten alloy plate is a very good material to produce the parts to resist high temperature & corrosion. It can be made into protective shields and high energy rays. The properties of 93W-Ni-Fe-Mo tungsten alloy plate are: Alloy Type（%）：93W、Balance Ni、Fe、Mo MIL-T-21014: NIL SAE-AMS-T-21014: NIL AMS 7725 C: NIL ASTM B777-87: NIL Density: 17 .7 g/cc and 0.639 lbs/ in3 Hardness Rockwell: 32 C Ultimate Tensile Strength Min: 125,000 ksi Yield Strength Min (0.2% offset): 95,000 ksi Elongation: 4% in…

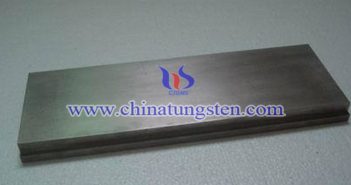

92.5W-Ni-Fe-Mo tungsten alloy plate has high hardness, better machinability, excellent wear-resistance, high elastic modulus and compressive strength. It is used to make parts and components for nearly every industry imaginable. The properties of 92.5W-Ni-Fe-Mo tungsten alloy plate are: Alloy Type（%）：92.5W、Balance Ni、Fe、Mo MIL-T-21014: NIL SAE-AMS-T-21014: NIL AMS 7725 C: NIL ASTM B777-87: NIL Density: 17 .6 g/cc and 0.636 lbs/ in3 Hardness Rockwell: 30 C Ultimate Tensile Strength Min: 120,000 ksi Yield Strength Min (0.2% offset): 90,000 ksi Elongation: 4% in…

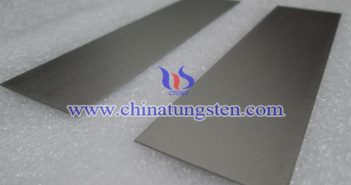

92.5W-5.25Ni-2.25Fe tungsten alloy plate has the highest melting point of the refractory metals, high density, strong corrosion resistance, and low coefficient of thermal expansion. It is widely used in electronics, lighting, vacuum coating, electric vacuum stove electrode, heat insulation screen. The properties of 92.5W-5.25Ni-2.25Fe tungsten alloy plate are: Alloy Type（%）：92.5W、5.25Ni、2.25Fe MIL-T-21014: Class 1 SAE-AMS-T-21014: Class 2 AMS 7725 C: NIL ASTM B777-87: Class 2 Density: 17.5 g/cc and 0.632 lbs/ in3 Hardness Rockwell: 26 C Ultimate Tensile Strength Min: 114,000…

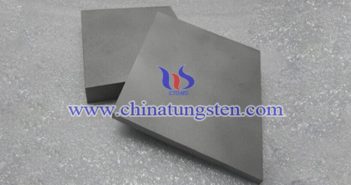

90W-7Ni-3Fe tungsten alloy plate has better machinability, very good mechanical properties, and high absorption capacity for X-rays and gamma rays. It can be applied in the radiation shielding material and radiation-protective equipment. The properties of 90W-7Ni-3Fe tungsten alloy plate are: Alloy Type：W 90%、Ni 7%、Cu 3% MIL-T-21014: Class 1 SAE-AMS-T-21014: Class 1 AMS 7725 C: 7725 C ASTM B777-87: Class 1 Density: 17.1 g/cc and 0.614 lbs/ in3 Hardness Rockwell: 25 C Ultimate Tensile Strength Min: 120,000 ksi Yield Strength Min…

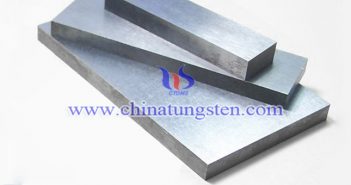

90W-6Ni-4Cu tungsten alloy plate has high melting point, low thermal expansion, high electrical resistance, and good thermal conductivity. It is suitable for high temperature uses which include electrical, heating, and welding applications. The properties of 90W-6Ni-4Cu tungsten alloy plate are: Alloy Type：W 90%、Ni 6%、Cu 4% MIL-T-21014: Class 1 SAE-AMS-T-21014: Class 1 AMS 7725 C: 7725 C ASTM B777-87: Class 1 Density: 17.1 g/cc and 0.614 lbs/ in3 Hardness Rockwell: 24 C Ultimate Tensile Strength Min: 110,000 ksi Yield Strength Min…

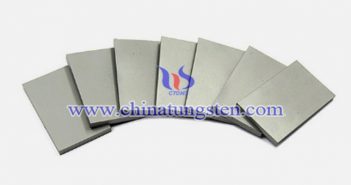

AMS 7725E class4 tungsten alloy plate has much higher thermal conductivity with much smaller thermal expansion coefficient. It can be used as medical facilities, obstruction of radiation and interference, to heat elements of high temperature furnaces. The properties of AMS 7725E class4 tungsten alloy plate are: Matrix: 95% W Density: 17.75~17.35g/cc Hardness Rockwell Max: 34HRC AMS 7725E: Class4 Type2 Ultimate Tensile Strength: 100 KSI and 689 MPa Yield Strength (0.2% offset): 75 KSI and 517 MPa Elongation: 2% Chinatungsten Online…
